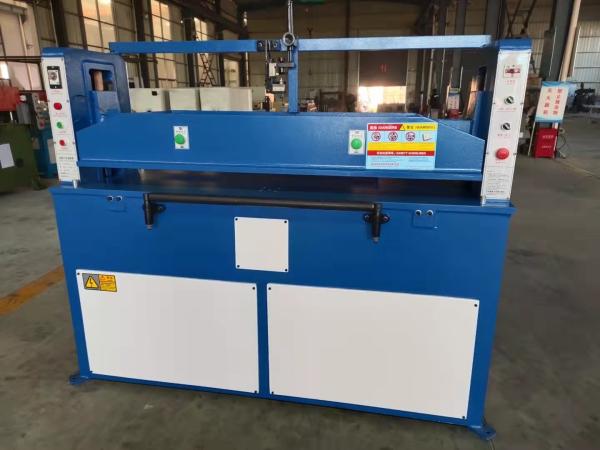

Shoes Insole Press Hydraulic Flat Cutting Machine For Leather

Name: Shoes Insole Press Hydraulic Flat Cutting Machine For Leather
Brand: YAOYU
Price: 4000 USD

China Shoes Insole Press Hydraulic Flat Cutting Machine For Leather wholesale

Brand Name : YAOYU

Model Number : YY

Certification : CE

Place of Origin : JIANGSU ,CHINA

MOQ : 1 SET

Payment Terms : TT50% IN ADVANCE ,50% BEFORE SHIPMENT

Supply Ability : 100 sets per month

Delivery Time : 30 wor days

Packaging Details : WOODEN CASE

Price : $4000-$4500

Color : Blue and White

Parameter : Can be customized

Cutting Force : 30 T

Seissor speed : 0.10m/s

Stroke adjustment : 0—100mm

Range between the working tables : 50—150mm

Contact Now

China Insole Cutting Machine Manufacturer | Shoes Insole Cutting Press Supplier From China

"Yaoyu" Hydraulic flat cutting machine

Parameter:

Seissor speed	0.10m/s
Stroke adjustment	0—100mm
Range between the working tables	50—150mm
Size of the upper pressing board	1600×500mm
Size of the pressing board	1600×550mm
Motor power	2.2KW
Overall dimension	2000×700×1300mm
Total weight	1500kg

Application:

This machine is suitable for cutting leather, plastic, canvas, nylon, cardboard, vacuum molding, composite material, foam, packing, and various synthetic materials.

Advantage:

1 .The steering of the pressure plate is guided by two side rails, which leads to better results and ensures the parallelism of the upper and lower working surfaces.

2. Use two-hand operation switch to ensure the safety of operators.

3. The machine is equipped with a working drag board so that the operator can take out the die safely.

4. The main shaft and the shaft seat are installed with self-lubricating bearings without refueling, without abrasion.

Suitable for wide and multi-layer materials.
